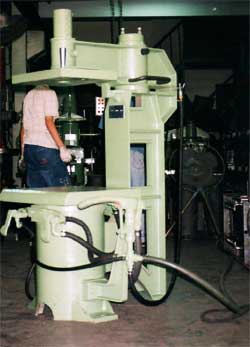

　 § ADJUST PRESSING PLATE TYPE MOULDING MACHINE
　
　



This type can change the pressing plate high or low. Do not need to add the pressing plate thickness. Do not need to change the wooden pressing plate frequently either. Other functions are the same as F-1

　 § SPECIFICATION
　
MODEL
F-1B
F-2B
TABLE SIZE (mm) 450 x 520 (mm) 485 x 580 (mm)
SQUEEZE PRESSURE 3000 kgs 4300kgs
JOLT CAPACITY 170kgs 300kgs
MACHINE SIZE (mm) 870 x 1050 x 1500.mm 970 x 1250 1650.mm
MACHINE WEIGHT 320 kg 480 kg
　
